Track lighting

Install Methods

Standard
track

Standard
track

Standard
track

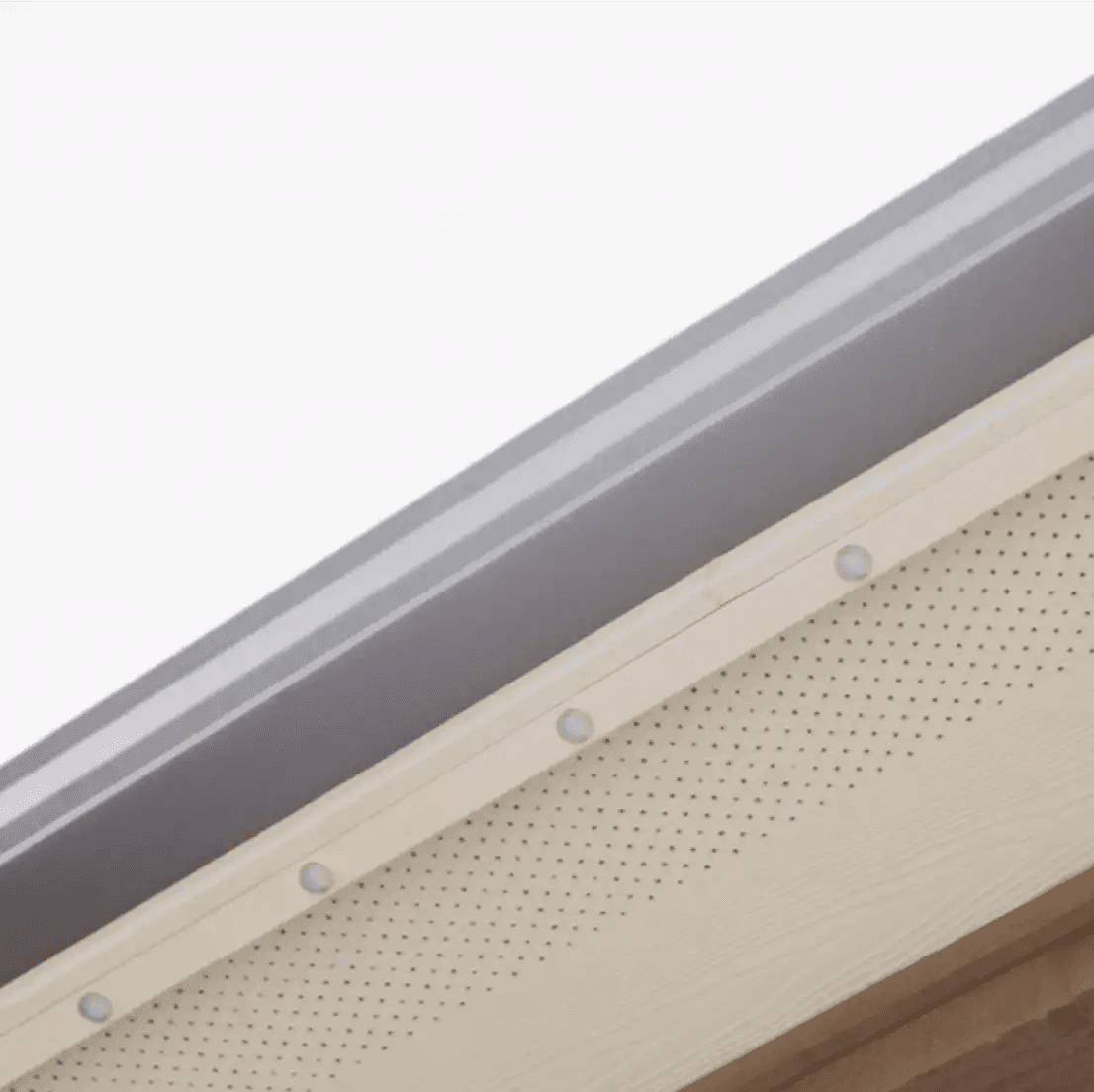

Flat soffit

9" between lights

Lights face directly downward

Canted
track

Canted
track

Canted
track

Angled soffit

9" between lights

Lights face directly downward

Fat track &
standard track

Fat track &
standard track

Fat track &
standard track

Soffit less than 1 1/4" wide

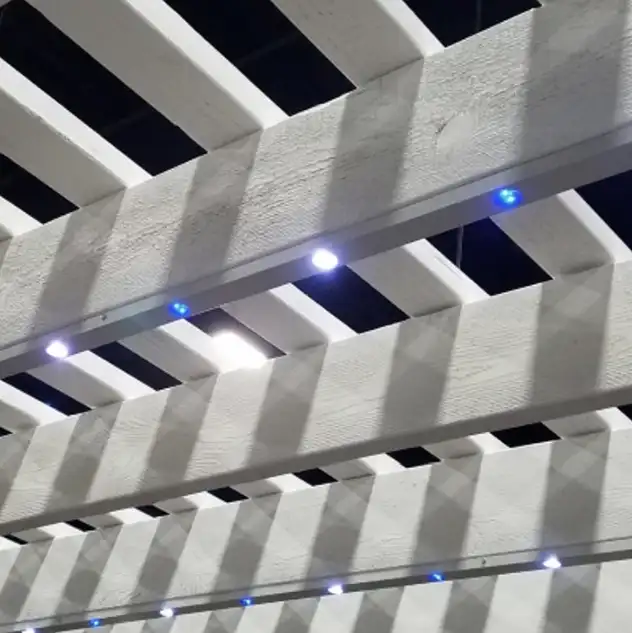

Beams, awnings, pergolas, etc.

9" between lights

Lights face directly downward

Z flashing &
standard track

Z flashing &
standard track

Z flashing &
standard track

Soffit less than 1 1/4" wide

Drip edge or wall cap

9" between lights

Lights face directly downward

Madhav flashing
& standard track

Madhav flashing
& standard track

Madhav flashing
& standard track

Madhav flashing
& standard track

No soffit

Drip edge or wall cap

9" between lights

Lights face at a 45° downward angle

Radius

Radius

Radius

Radius

Round structure

9" between lights

Can be paired with tracks above to change light angle
